| MODEL | .jpg) |
| panel size | 50" |
| Panel type | LED |
| Aspect Ratio | 16:09:00 |
| Brightness/Luminance | 500nit |
| Contrast Ratio | 1900/7/26 8:01:00 |
| Response Time | 6.5 ms |
| Visible Area | 1097.3（H) x619.1 (V)mm |
| Viewing Angle(H/V) | 178°/178° |
| Color display | 1.07B |
| Resolution | 3840*2160 |
| User control | Control Panel、Remote Control、232 |

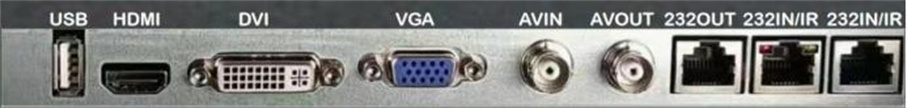

| Input Interface | HDMI*1、VGA*1、USB*1、DVI*1、AVIN*1、232IN*2 |
| Output Interface | AVOUT*1、232OUT* 1 |
| Audio Ouput | 2*stereo speaker |
| Power Supply | 110-220V/0.7A |
| Frequency | 50-60Hz |
| Power Consumption | 90W |
| Housing | Iron back，ABS plastic frame |
| Size | 1132.5*664.3 |
| Installation | Base，Walling Hunging |
| Weight | 15.5kg |
| Working Temperature | 0-50℃ |
| Operating Humidity | 10%-90%RH |
| Storage Temperature | - 20°- 60° |

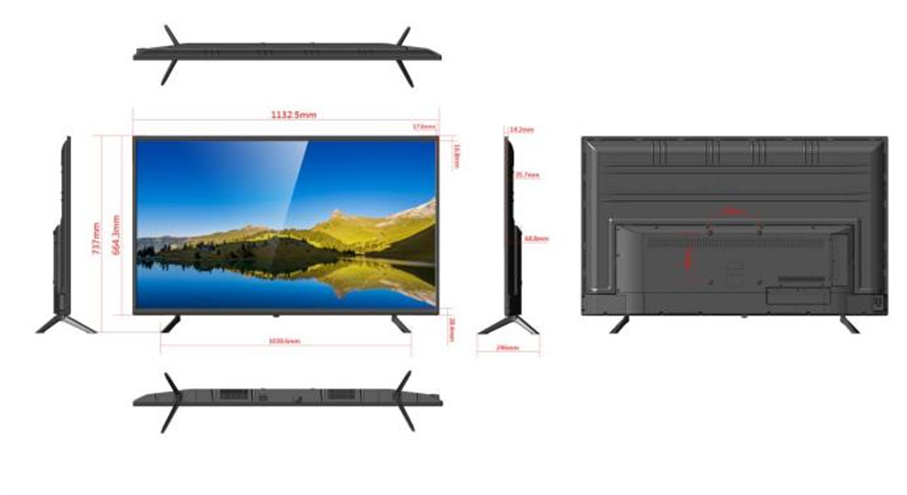

Dimensions Interface Diagram：
