| No. | Sorts | Type | Parameters |
| 1 | System | Operating system | Linux |
| Online visitor | Supports 4 visitors viewing at the same time. | ||
| APP | O-KAM Pro | ||
| 2 | Collection | CPU | T23 |
| Memory | 512Mb | ||
| Image sensor | GC1084, 1/3 CMOS | ||
| Minimum illumination | 0.8Lux/F1.4(Color mode),0.3Lux/F1.4（B&W mode) | ||
| Lens | Standard lens 14mm, 1G3P, IR-CUT integrated | ||
| Sensor performance | Supports automatic white balance, automatic gain control, and automatic backlight compensation. | ||
| Shutter type | Electronic rolling shutter | ||
| Viewing angle | Diagonal 100 ° | ||
| 3 | Video | Night Vision | Color night vision, dual light sources, visible distance: 10-20 meters |
| Compression standard | H.264 /MJPEF/JPEG | ||
| Data rate | Main stream: 1080P/15fps, sub stream: 360P/15fps | ||
| IR control | When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. |
||
| Bit rate | CBR/VBR two rate control modes, with an output rate range of 128 to 4096kbps. | ||
| Image adjustment | Brightness, contrast, vertical, horizontal adjustable, OSD display. | ||
| 4 | Audio | Input | Built-in-38dB microphone |
| Output | Built-in 8Ω1W speaker | ||
| Sampling frequency/bit width | 8KHz/16bit | ||
| Compression standard/Bit Rate | G711A | ||
| 5 | AI | Humanoid detection | Humanoid detection, filtering invalid alarm events. |
| Human tracking | Automatically frame and track the human when detected | ||
| Area detection | Customize detection zones, only monitor areas that matter. | ||
| Intelligent notification sound | Set different notification sounds for different devices, so that you can accurately determine which device is triggered. | ||
| Intelligent alarm sound | Set different alarm sounds based on different scenarios. | ||
| More AI functions (under testing) | Pets, vehicles, packages, etc | ||
| 6 | Network | Network protocol | TCP/IP,HTTP,UDP,DHCP,DNS,NTP,RTSP,P2P,IPV4,IPV6 third party access protocols, etc |
| Wireless network | IEEE802.11b/g/n | ||
| Wireless frequency | 2.4~2.4835GHz, 5.8G dual band optional | ||
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | ||
| Wireless connection method | AP hotspot, Scan QR code, Bluetooth | ||
| 7 | Key | Key | / |
| Reset key | Long press to restore factory settings | ||
| Indicator light | Dual color indicator lights together with voice prompt | ||
| 8 | PTZ | Rotation angle | Horizontal 355 °, vertical 90 ° |
| Presets | Supports customizing 5 preset positions | ||
| Guard position | Support | ||
| Cruise function | Horizontal cruise, vertical cruise, preset cruise (stops automatically after 10 minutes) | ||
| Physical privacy | Supports | ||
| 9 | Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | Free trial of cloud storage for 30 days | ||
| 10 | Alarm | Sound light alarm | Supports |
| Alarm detection | Mobile detection, humanoid detection | ||
| 11 | Physical Indicators | Rated voltage | DC5V 1.5A |
| Power supply | Micro usb 5V/1.5A corded electric powered | ||
| Operating condition | Temperature: -10～55℃; Humidity: ＜90% | ||
| Weight | Gross weight: （Note: in kind prevail） | ||
| Size | （Note: in kind prevail） | ||
| Packaging list | Camera * 1, Micro USB cable * 1, manual * 1, 5V1.5A-USB charger |
Product
Contact Us
 |
+86 18124720400 |
|
16675425442 |
 |
+86 18124720400 |
 |
Steve |
 |
steve@ankvision.com |
 |
4/F., No. 28, Hong Yuan Technology Park, Fucheng Shijing Rd., Guanlan St., Longhua New District, Shenzhen, Guangdong, China |
You are here：Home >> Product >> CCTV CAMERA >> Hot Selling
Hot Selling

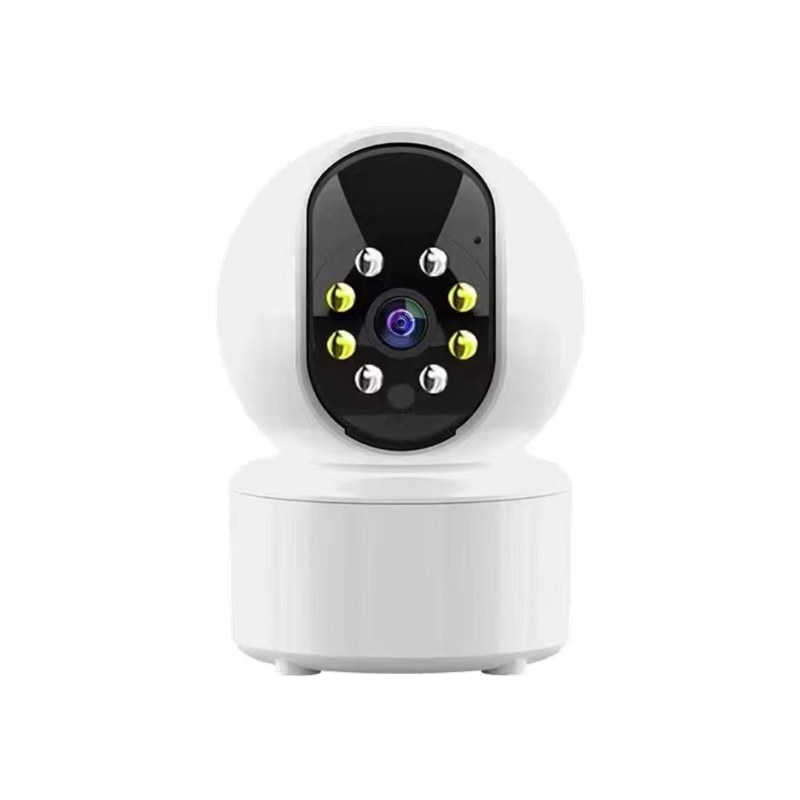

P02T2
Product features
✮Wireless connection
✮Full duplex voice intercom
✮355°automatic cruise
✮Hidden interface design
✮Worldwide cloud storage service
✮Compact appearance
✮1080P HD
✮Active one click call
✮Compatible with 90% shells of indoor PTZ camera and outdoor dome camera on the market , 5V optional
